Continuous Synthesis Technology
Continuous Synthesis Technology
A technology optimized for large-scale graphene production that
implements synthesis–etching–transfer processes continuously on a production line,
like newspaper printing, achieving approximately 40 times higher productivity compared to batch methods.
-
Targeting an annual production of 100,000 m² by the end of 2023
(1,000,000 m²/year by 2025) -
"Graphene Valley" centered around Pohang National Industrial Complex
Implementation of development project
(in collaboration with POSCO, POSTECH, and Pohang City) -
Graphene Square Co., Ltd. has secured extensive rights to core patents necessary for roll-to-roll graphene mass production
-
Secured foundational patents for graphene applications, including heating, heat dissipation, gas barrier, and electromagnetic shielding

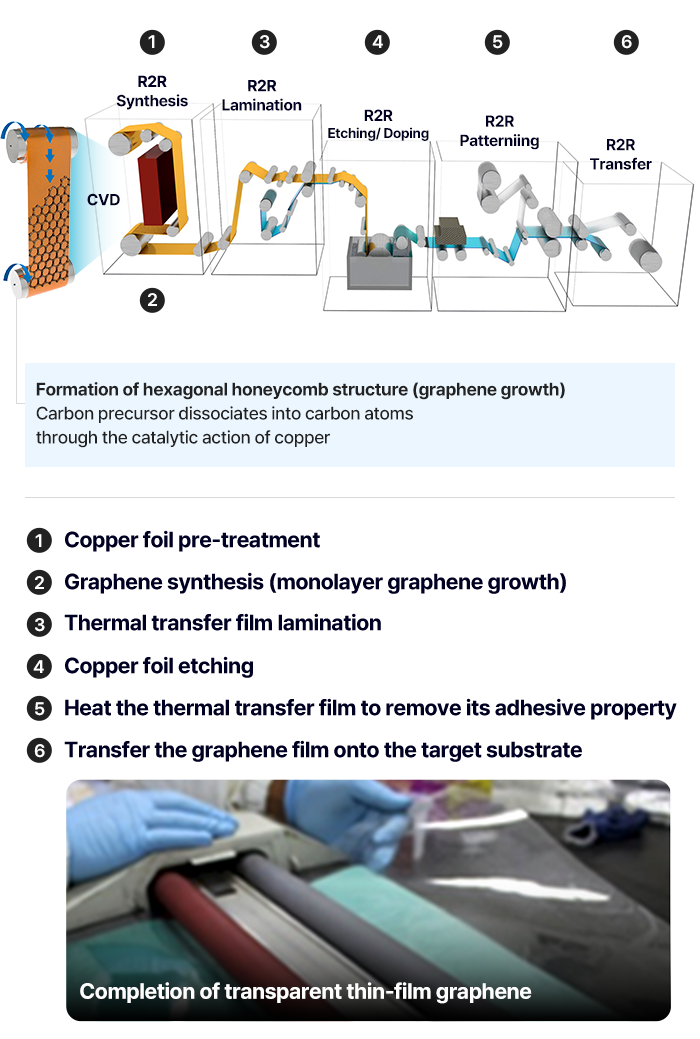

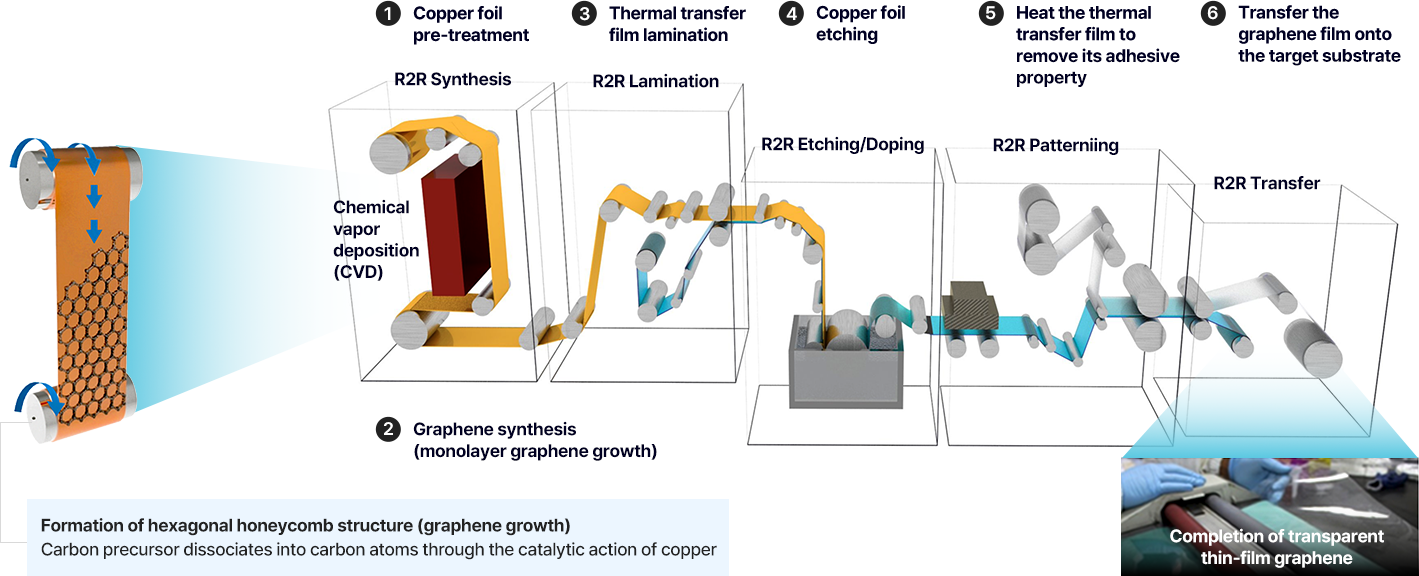

Roll-to-Roll CVD
Key processes in graphene mass production technology
High-quality thin-film graphene is produced continuously through the
“synthesis–etching–transfer” process, similar to printing a newspaper.
Production efficiency increased 38-fold
Compared to batch processes
Large-area graphene mass production
Up to 150,000 cm²/h
Core technology rights fully secured
| '22.3Q | Domestic | International | Total |
|---|---|---|---|
| Registered | 30 | 17 | 47 |
| Filed | 3 | 25 | 28 |
